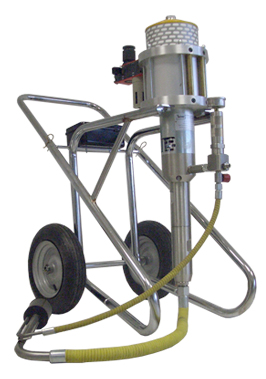

18000 P is an airless pneumatic pump, built to work continuously for a high productivity! This unit can handle all types of materials: thick and thixotropic products (normally used in the shipyards), fireproofing products, water and corrosion proofing products. 18000 P is ideal in the big industry, in the big carpentry, in the mechanical industry, shipyards, where a high productivity and the possibility of working continuously are required.

The airless system:
The Airless system allows a big reduction of overspray with three important advantages: paint saving, high working speed, envirenmental protection.

Performances:
  • Tungsten carbide valve seats
  • For the shaft anti-wear treatment
  • Buil-in line filter
  • Pneumatic motor with lubrication
  • Automatic adjustment of packings
    •
    Construction specifications:
    18000 P is a strong and reliable pump. The automatic adjustment of packings, depending on the wear, allows a longer life and a better performance of pump. Easy and fast maintenance. Hard chrome treatment for the product pistont. Tungsten carbide valve seats.



      #018000 - Ratio 66:1

      #018500 - Ratio 48:1




      Destination's field   Applications   Suggested guns
    Shipyards
    Industrial building
    Big mechanical industry
    Fire-proof painting
      Fireproof paints
      Thixotropic products
      Latex
      Water based products
      Epoxy without solvent
      Bi-components
      Not abrasive paints



      Airless P 500 H


      Airless P 500 SS

    Motor Type:

    Pneumatic motor
    Ratio:

    66 :1

    		 48 :1
    Air intake pressure: 6,5 bar    8,0 bar
    Max. Delivery: 18 lt/min    25 lt/min
    Volume double stroke: 115,0 ccm    150,0 ccm
    Operating pressure max.: 480 bar    280 bar
    Diameter cylinder: 200 mm    200 mm
    Piston stroke: 120 mm    120 mm
    Max. spray tip: .061    .072
    Air consumption:

    600 - 2650  (lt/min)

    		  600 - 2650   (lt/min)



    18000 P (48:1 - 66:1) explosion drawing.pdf
