Double diaphragm pump BOXER 24 INJECTION has been designed to inject
walls. This pump together with the small compressor is a complete and
efficient equipment which grant high
performances!!!
Construction specifications:
BOXER 24 INJECTION is a pneumatic double diaphragm pump built for
injecting in walls all liquid or normal density products. The direct
suction from container assures a constant feed to the gun. All parts
in contact with the product are built with a special anti-acid and
fireproofing material. No lubrication. Easy and fast maintenance.
SYMPTOMS:
Elevated humidity levels could affect a building more than 30 years old
and this can be seen by:
◊ mold along the fundation
◊ spalded plaster
◊ appearance of condensate
CAUSES:
Elevated humidity is due to water existing along the foundation and the
construction material capacity to absorb this water.
REMEDIES:

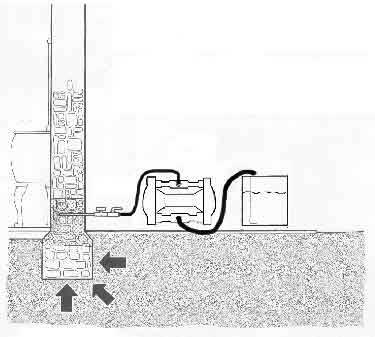

TAIVER have developed an injection system that penetrates in the wall
forming a horizontal chemical barrier. This barrier
prevents the capillary from raising the humidity, drying the
environment with immediate benefits to the inhabitants.
Moreover, it causes the removal of the signs of mold, forms a
thermal isolation of the wall and permits the restoration and repairs of
the plaster surface.
Injection kit
Distributor 6-ways
Injector
DRILLING:
With a 12/16 mm; ø drill point, holes are drilled at 15 cm
spacing. The holes are not the drilled the final 10 cm of the
wall.
INJECTION:
Place the pins inside the opening of the holes and open the tap.
When the pump is operated the injection process is working.
CONTROL:
If the gauge indicates that the pressure is
falling this means that there is a fissure or crack in the wall.
Close the tap for the
corresponding pin and continue to distribute the materials
through the other injection pins.
If the plaster is damaged, remove any loose plaster. Using a
latex additive mortar, make a containment seal in the area of
the removed plaster.
