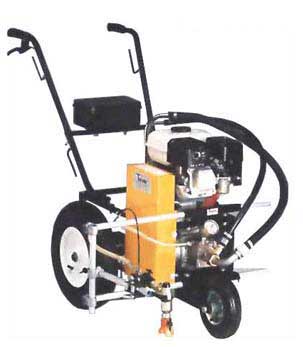

LINE-PRO is an airless diaphragm
pump, self-contained, gas engine, very strong and handy pump. With
LINE-PRO is very easy to mark lines for parkings, curves, cycles track,
etc....This linemarker is used for all kind of traffic signs jobs! When
required, LINE-PRO becomes an airless pump for spraying walls, doors,
tools......LINE-PRO is ideal both in the industry and local governments,
who can handle many different jobs with one only unit!
Construction specifications:
LINE-PRO works
with a strong and reliable HONDA motor HP 4. The airless system
allows to mark perfect lines with the normal paint (not abrasive)
used for directional separator. The operator can easily control the
spraygun by a lever on the handle. When required, LINE-PRO becomes
an airless unit, self-contained. It sucks the paint directly from
container. Tungsten carbide valves. Paint body with corrosion-proof
treatment.
Second gun kit
includes, tubing, Airless gun, hose, tips, trigger assambly and all
hardware required to hook-up the existing LINE-PRO. The maximum tip size
when using two guns at the same time is .017. It is recommended to use
.015 tips which will last longer.
Rotating wheel kit
Locks in forward
position and has remote trigger control. For custom circle locking, a
manually operated knob locks to any angle required.
Glass bead kit:
Taiver dispenser is designed to
apply glass bead onto wet traffic paint. The system comes with a 6 ltr.
capacity hopper, one 4" dispenser head, and all fittings, hoses and
hardware required for operation. This is a gravity system which requires
no air or any other power source. The dispenser is mounted direcly
behind the spray gun. When the gun is actuated, the bead dispenser door
opens simultaneously with the gun. A shower of beads the width of the
dispenser is then deposited onto the wet paint line. The amount of beads
dispensed is easily adjusted using only a screwdriver.
Parking lines
