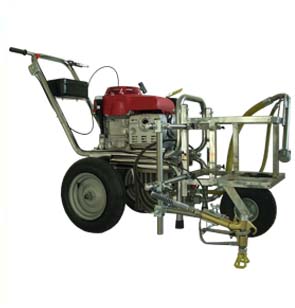

GOLD 11000 linemarker is an airless diaphragm pump, self-contained, gas engine, very strong and handy pump. With GOLD 11000 linemarker is very easy to mark lines for parkings, curves, cycles track, etc....This linemarker is used for all kind of traffic signs jobs! When required, GOLD 11000 becomes an airless pump for spraying walls, doors, tools......It is ideal both in the industry and local governments, who can handle many different jobs with one only unit!



Construction specifications:

GOLD 11000 linemarker works with a strong and reliable HONDA motor HP 9. The airless system allows to mark perfect lines with the normal paint (not abrasive) used for directional separator. The operator can easily control the spraygun by a lever on the handle. When required, GOLD 11000 linemarker becomes an airless unit, self-contained. It sucks the paint directly from container. Tungsten carbide valves. Paint body with corrosion-proof treatment.

Performances:
  • The easiest system for linemarking
  • Multifunctional: line marking or paint spraying
  • Easy to use
  • Suction directly from container
  • Tungsten carbide valves
  • All parts in contact with paint are corrosion-proof treated
  • Working in accordance with latest European Union rules
  • Trolley with pneumatic wheels
  •

      #010670 - with linemarker kit






      Destination's field   Applications   Suggested guns
      Parking lines
      Industrial signaletics
      Painting
      Industrial carpentry
      Guard-rail painting
      Waterproofing
      Paint
      Thixotropic products
      Latex
      Water based products
      Industrial epoxy
      Not abrasive paints for signaletics


      Airless P 500 TOP GUN

        Airless T 65 gun

      Motor Type: Gas Engine, HONDA
      Power:

    9 HP

      Weight:   75 Kg
      Max. Pressure: 280 Bar
      Free Delivery:   9,5 lt/min
      Max. Spray Tip  .052"



    GOLD 11000 Gas Engine explosion drawing.pdf



    Print this page
    Send a request










       Second gun kit:

    Second gun kit includes, tubing, Airless gun, hose, tips, trigger assambly and all hardware required to hook-up the existing GOLD 11000 linemarker. Second gun kit can be assambled on right side or left side according to user's preference.
