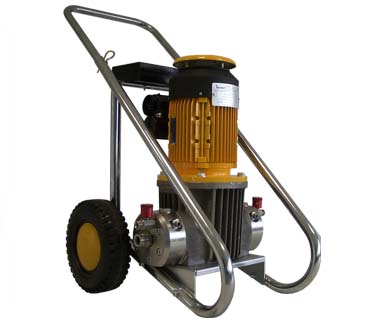

GOLD 22000 is the ideal pump for big contractors who have to do very important and high productivity works. This renewed self-contained double diaphragm pump supplies an excellent performance using very low power (only 2 Kw). At present GOLD 22000 is the most powerful airless diaphragm pump on the market! It can spray thick and thixotropic products, two material components using a 1 :1 mixture, or using two or more guns simultaneously. This pump is ideal for big works in building, big carpentry, for waterproof jobs and in the naval field.


The airless system:

The Airless system allows a high working speed and reduces the overspray, therefore paint and solvent saving. Less overspray means also less pollution and benefits for the worker's health!



GOLD 22000 can be supplied:
  • with electric motor singlephase

  • with electric motor threephase

  • with gas engine

  •




      #020003


    Construction specifications:

    The electric motor GOLD 22000 is H class, that means: maximum quality and safety. It can work in very bad conditions and with very high temperature. An automatic system stops the pump when exceeding the electric safety limits. The head blocks are in stainless steel, the valves in tungsten carbide.GOLD 22000 has been designed for an easy maintenance.






      Destination's field   Applications   Suggested guns
      Industrial building
      Mechanical Industry
      Big carpentry
      Waterproofing painting
      Shipyards
      Asbestos-clad
      Paint
      Thixotropic products
      Latex
      Water based products
      Industrial epoxy
      not abrasive paints


      Airless P 500 TOP GUN

        Airless T 65 gun



      Motor Type:

    Electric singlephase

      Power:

    3 HP

      Weight:

     72 Kg

      Max. Pressure:

      210 Bar

      Voltage:

    230 Volt/50 Hz

      Free delivery:

    18 lt/min

      Max. Spray tip:

     .061"



    GOLD 22000 explosion drawing.pdf
