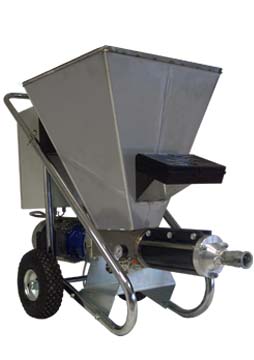

In the industrial building field MTV is a pump with innovatory characteristics which allow to spray prepared cements and whitenings,plastic coatings up to 3 mm. grain size. MTV is the ideal pump for spraying coatings on buildings, walls, etc...with very low costs but with high working speed without effort!


Construction specifications:
MTV is a screw pump with a singlephase electric motor and direct pulley belt transmission with reducer. Speed is adjusted electronically. MTV is available in two version (MTV 80 and MTV 200).


Performances:
  • light and easy to move
  • hopper capacity: 55 lt
  • hopper in stainless stell
  • 10 mt. head excellent working
  • speed
  • System for reusing the worn lung
  • Belt tightener incorporated
  • Built in accordance with latest
  • European Union rules
  • flat and round spray tips
  •




      #017000 - MTV   80
      #017500 - MTV 200







      Destination's field   Applications   Suggested guns
      Industrial building
      Plastic plastering
      Ready plaster
      Ready cement


      Lance Bear




    MTV 80

    MTV 200

      Motor Type:

    Singlephase

      Power HP 0,75 HP 2
      Delivery: 5 lt/min 12 lt/min
      Weight 57 Kg 67 Kg


    MTV 80 - explosion drawing.pdf
    MTV 200 - explosion drawing.pdf
